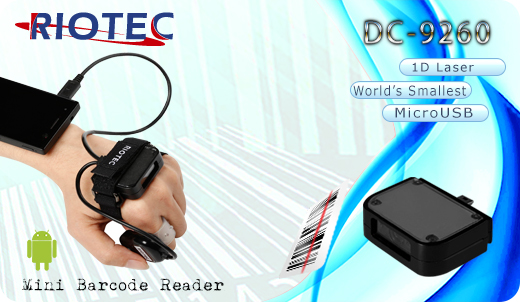

Riotec DC9260 1D MicroUSB Wearable barcode scanner for Android

£79.00
In stock
SKU
DC9260

Riotec DC9260 1D MicroUSB Wearable Mini barcode scanner for Android

The Riotec DC9260 1D MicroUSB Wearable Mini barcode scanner is a modern, mini barcode scanner. The RIOTEC DC9260 is connected to the unit via a MiniUSB port has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc .

Riotec DC9260 1D MicroUSB Wearable Mini barcode scanner for Android

The Riotec DC9260 1D MicroUSB Wearable Mini barcode scanner is a modern, mini barcode scanner. The RIOTEC DC9260 is connected to the unit via a MiniUSB port has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc .

RIOTEC DC9260 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych barcode .

1D Barcode Scanner - Riotec DC9260 through MiniUSB connector (which ensures proper communication) is compatible with mobile devices (tablets / smartphones), having a built-in miniUSB connector.

Product Description
˙ 1D Mini Mobile Barcode Scanners are designed for Android OTG devices.
˙ DC9250/57: Plug & Play, No need extra driver
˙ DC9260/67: Wearing form design frees operator's hands to move packages, products or materials, helping to improve efficiency and productivity.
˙ Lightweight, ergonomically designed for easy operation
˙ With application, DC92xx series make Android OTG devices become data collector economically.

Mini czytnik Barcode 1D RIOTEC DC-9260 MicroUSB  Skaner 1D  Poręczny Kompatybilny Android mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI OTG

Product Character
   Mini Mobile Barcode Scanner for Android OTG devices
Features
  ˙ 1D/2D Mini Mobile barcode scanners are designed for Android OTG devices
  especially.
˙ DC9250/57J: Plug & Play, No need extra driver
˙ DC9260/67J: Wearing form design frees operator's hands to move packages,
  products or materials, helping to improve efficiency and productivity.
˙ Lightweight, ergonomically designed for easy operation
˙ With application, DC92xx series make Android OTG devices become data collector
  economically.
Specifications :
Model Name DC9250 DC9260 DC9257J DC9267J
Engine   RIOTEC 1D laser engine 2D ENGINE
Performance Characteristics
˙ Light source   650 nm Laser Diode 625±10 nm LED
˙ Depth of field   Up to 520 mm 1D (15 mils PDF417):265 mm
˙ Scan speed   100 scans/sec 60 frame /sec
˙ Best resolution   0.1mm ( 4 mils) - Code 39 1D (5mils):Code 39
˙ Scan Angle   38°  Tilt: 360° / Pitch ±55° / Skew ±55°
˙ Interface   Mini USB/ Micro USB Mini USB/ Micro USB
˙ Print contrast   45% or more ≧25%
˙ Symbologies   Code 128, coda bar, interleave 25,
Industrial 25, matrix 25, China postage,
UPC-A, UPC-E, EAN-13, EAN-8, MSI,
PLESSEY, code11, code 39, code 32,
code 93, TELEPEN …
(GS1, RSS is optional)
PDF417, Data Matrix, QR Code,
Code 128, EAN-13, EAN-8, Code 39,
UPC-A, UPC-E, Codabar,
Interleaved 2 of 5, ISBN, Code 93,
UCC/EAN-128, GS1 Databar,
Matrix 2 of 5, Code 11, Industrial 2 of 5,
Plessey, MSI-Plessey
Electrical Characteristics
˙ Input voltage   Smart Phone / Tablet  Power Smart Phone / Tablet  Power
˙ Current - operating   65 mA max 400 mA max
Physical Characteristics
˙ Dimension (L*W*H)   43 X 40 X 16 mm 43 X 34 X 16 mm
(without cable)
59X20X12mm
(Holder,
without strap)
43X40X16mm 43 X 34 X 16 mm
(without cable)
59 X 20 X 12 mm
(Holder,
without strap)
  Color   Black / White Black / White
˙ Weight   20 g  48 g 20 g 52 g
Environment
˙ Temperature-
operation
       0℃ to 50℃   0℃ to 50℃
˙ Temperature-storage   - 20℃ to 60℃ -40℃ to 80℃
˙ Humidity-operation   10% to 85% relative humidity,
non-condensing
5% to 95% relative humidity,
non-condensing
Decode Zone
˙   4 mils Code 39   80 ~ 105 mm -
˙   5 mils Code 39   75 ~ 135 mm -
˙ 10 mils Code 39   - 35 ~ 205 mm
˙ 13 mils Code 39   65 ~ 250 mm -
˙ 20 mils Code 39   65 ~ 350 mm -
˙ 40 mils Code 39   85 ~ 520 mm -
˙ 10 mils PDF417   - 50 ~ 215 mm
˙ 10 mils QR Code   - 55 ~ 140 mm
˙ 10 mils Data Matrix   - 50 ~ 160 mm
